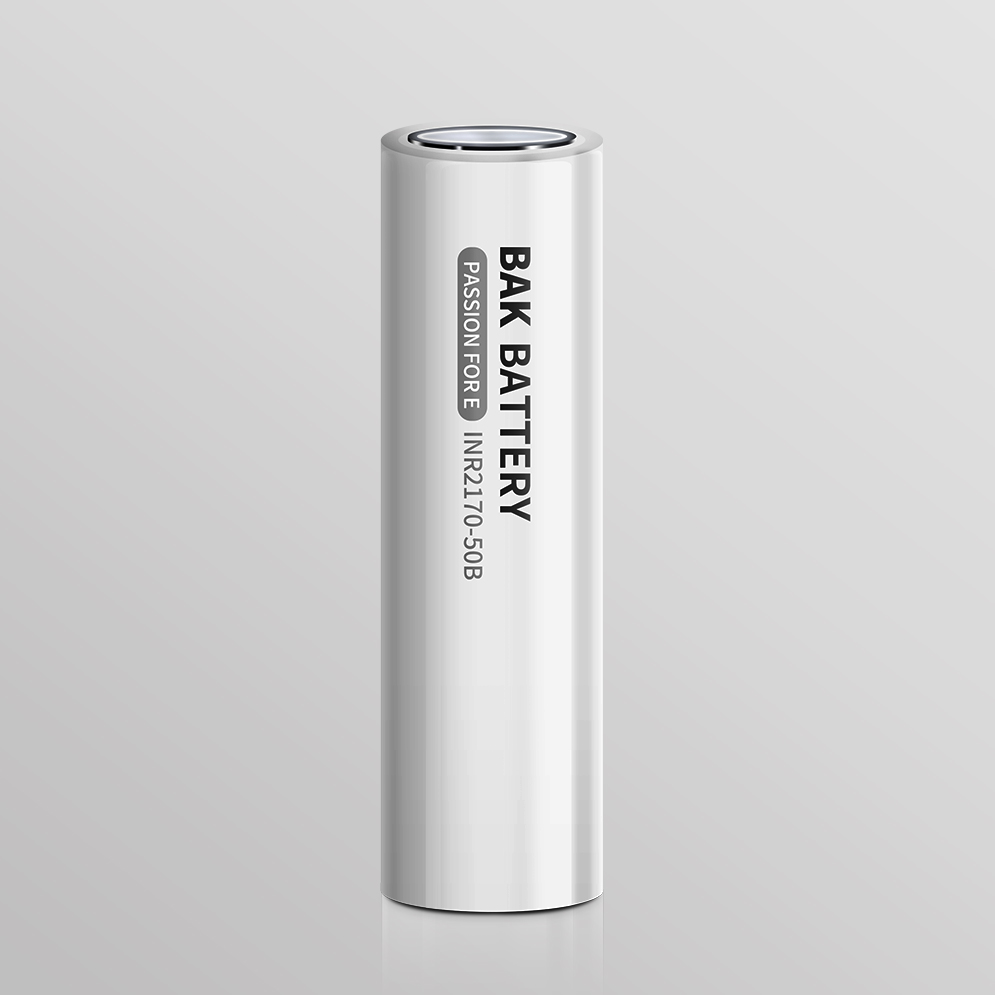

INR2170-50B



Product Features

Continuous Tab

High Power, Long Cycle

No Thermal Propagation, Multiple Safety Protections

Excellent Fast Charging Performance

Good Low Temperature Performance



Application Areas

3C

New Energy Vehicle

Power Tool



Product Specifications

• Energy
  C/3 discharge@25℃
  18Wh
• Capacity
  5.0Ah
• Weight
  ≤67g
• Energy Density
  C/3 discharge@25°C,100% DoD
  ＞725Wh/L ＞268Wh/Kg
• Voltage Window
  2.8~4.2V
• DCIR
  @25℃,50% Soc,1C 10s
  ≤10mΩ
• Max.Charge/Discharge Rate
  2C/12C
• Discharge Power
  ＞200W,90s
• Temperature
  -20~80℃
• Fast Charge
  Start@25℃,10%to80% Soc
  < 30min
• Cycle Life
  1C/200W,2.8-4.05V@25℃，80% SoH
  > 200 Cycles
• Storage Life
  80% Soc
  35℃-10years 45℃-6years 60℃-240days,CID不翻转
• Safety
  UL9540A,IEC62133,UL1642,UL1973,UN38.3
• Thermal Propagation
  No Propagation
